PDC's New FR Frame Featuring:
- Low standover Height
- Full Seat Tube Insertion
- OnePointFive Headtube

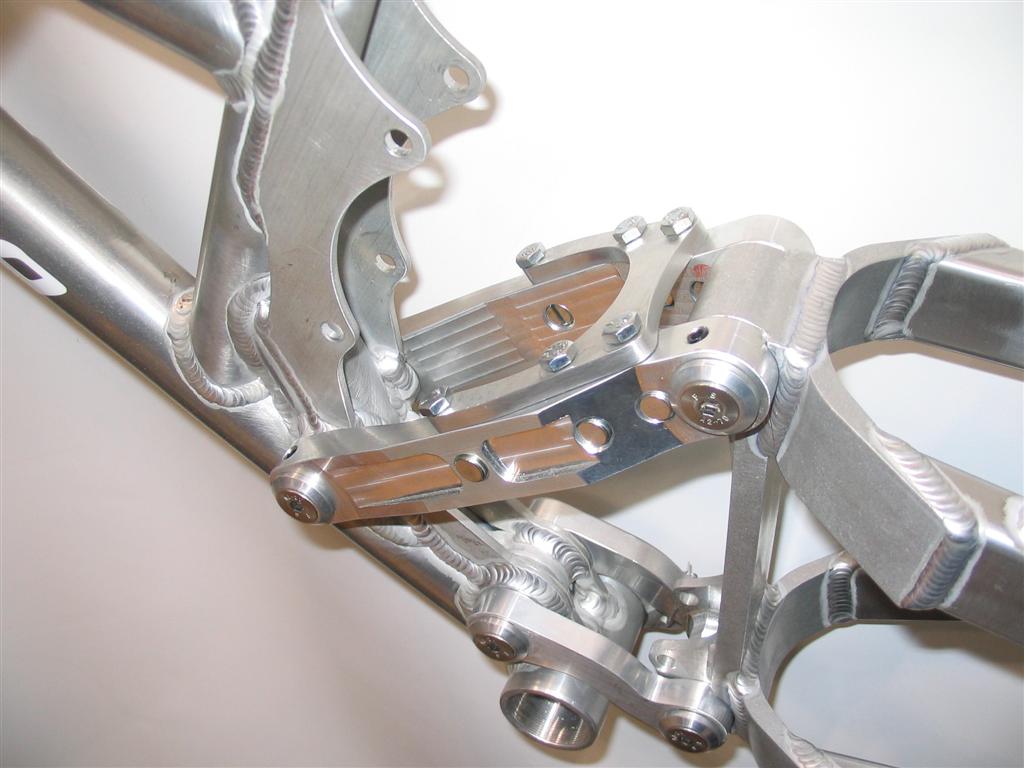

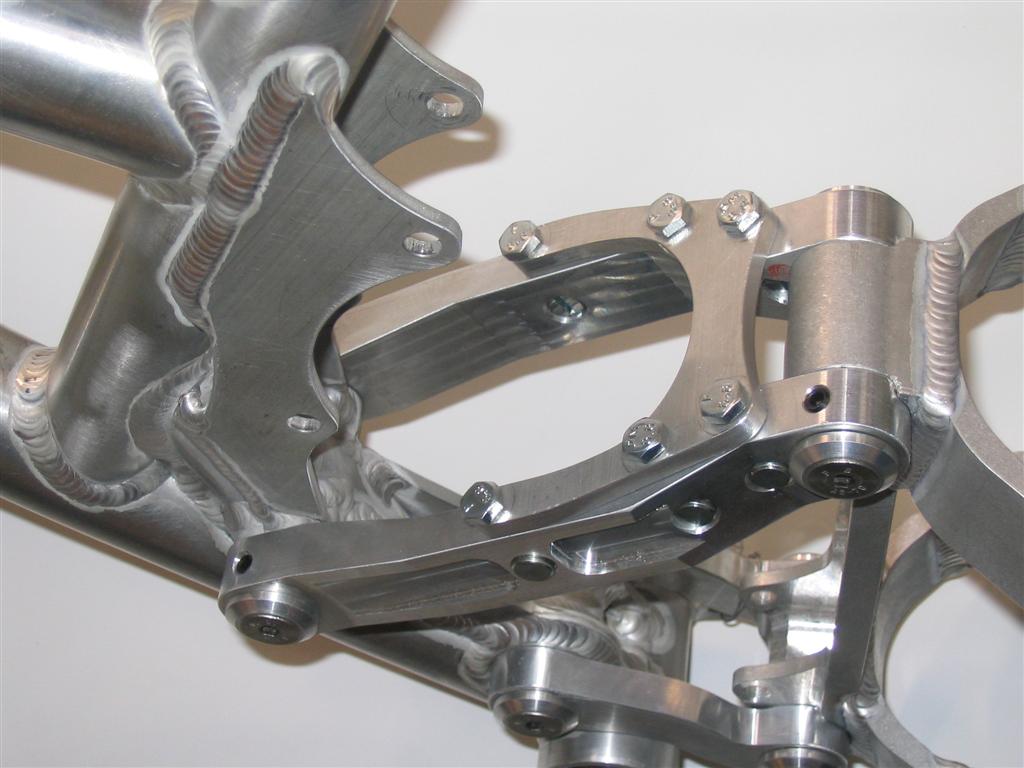

- Full Compliment Sealed Timken Needle Bearing Pivots, 13mm 4340 Pivot Axles
- Tough Easton RAD 7005 Aluminum Construction
- 8.25" Rear Wheel Travel Via Manitou Swinger 6-way Or Romic Twin Shock

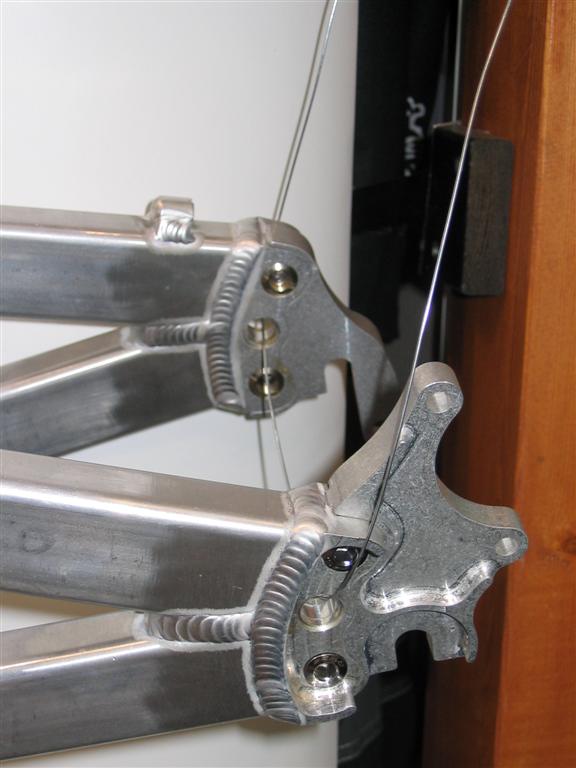

- Bolt-On Dropouts with QR or 12mm Option
- 73mm BB Shell With Forged ISCG Chain guide Tabs
- Retail Price $2299.00 (CAD)
Availible NOW!
GEOMETRY
Headangle: 67 Degrees
Seat Angle: 58* Degrees (Actual)
Chainstay Length: 16.9” ( 436.88mm)
Bottom Bracket Height: 14.4” (325.12mm)
Top Tube Length (Actual, Medium): 22.15” (563.53)
Designed for 7” Fork & Has 120mm Headtube Length.
Rear Wheel Travel: 8.25” Via 2.75” Stroke shock.

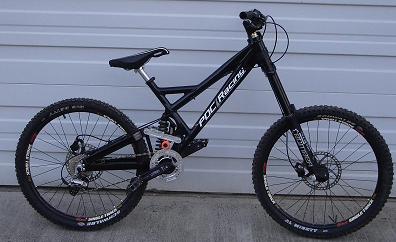

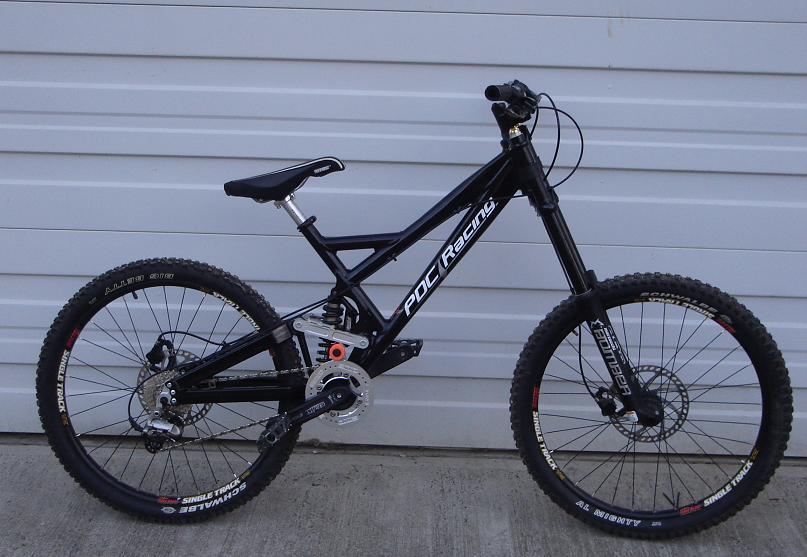

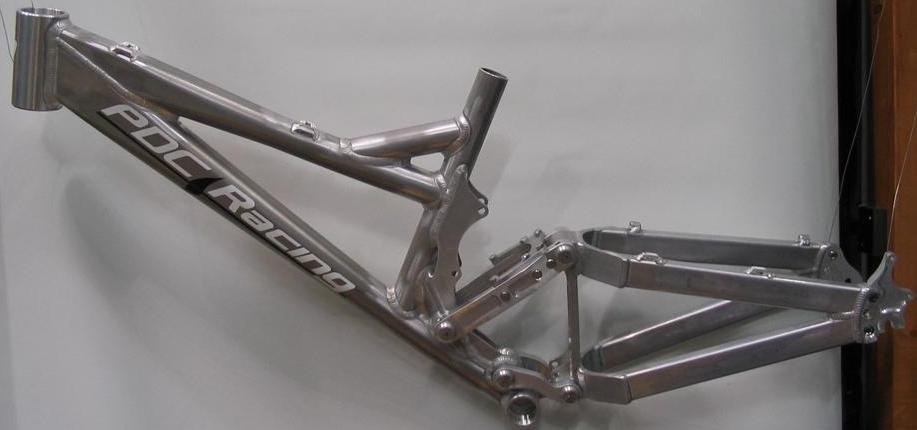

And For Your viewing Pleasure (Click To Enlarge!)
